Team ACRO

Dr. Satici requires an acrobot for machine learning testing. The goal is to develop a design which is uniquely suited to the robotics lab’s requirements. First, the standards and regulations section covers the OSHA standards relevant to this project, all of which are tied to the safety of the user. After this, the benchmarking section covers the 4 chosen benchmarks for this project; the existing BSU model, inertia wheel pendulum, Kendall Lui acrobot, and the irb 1520id.

Each benchmark brings a specific quality to base our design off of, which leads to the background and problem analysis lays out all the constraints and suggestions from Dr. Satici, including the project budget. This all helps create the stakeholder analysis, which defines who this project affects, and how. This informs our design decisions, which are seen in the needs section. Here, the essential elements for a successful design are introduced. First and foremost safety is covered. For example, the number one need listed is a safety switch. Lastly, the specification section lays out the requirements for the success of the project.

Pros

• Simple design
• Motor location counterbalances arms reducing required power

Cons

• Non-Professional Design
• Size of arms cause safety risk
• Carbon fiber pendulum arms prevent disassembly for maintenance/repair.
• Poor bearing selection.

Conclusion

The existing BSU model has a simple design. The motor was located on the top of non-driven pendulum acting as a counterbalance to reduce the required operating power. However, the design was not professional. The arms were very large causing a safety risk to the user. The use of carbon fiber arms made the device impossible to disassembly for maintenance. Lastly, the current main shaft bearings were designed for low speed high load uses, which causes high friction losses.

Pros

• Motion predictable
• Weight easily adjustable
• Center of gravity in the center of the wheel
• Capable of Large Velocities
• Durable
• Simple

Cons

• High Friction
• Flexibility of belt leading to a coupling effect
• Dead Zone
• Awkward motor mounting position
• Open belt is not aesthetically pleasing
• Safety

Conclusion

The inertia wheel pendulum is our second solution. This is a model created by Taylor and Francis. The design is fairly simple. A disk is attached at the end of a pendulum and belt driven by a motor mount slightly above it. This design makes the motion of the pendulum relatively easy to predict and its simplicity should make the system fairly durable. However, the open nature of the belt raises safety concerns and this method produces high levels of friction in the bearings and belt.

Pros

• Simple Pendulum
• Cost similar to our budget
• Alternate drive method

Cons

• Exposed belt is a safety risk
• Complicated drive system
• Cart mounted

Conclusion

The Kendall Lui model of the acrobot shows a simple pendulum design that is on point with the customers budget. The system is dual belt-driven. This is an alternate drive method to the current model at Boise State. However, the belt is exposed, causing a safety risk for the users. Additionally, the dual belt drive is complicated and the device is cart mounted. Both of these factors are outside the scope of this project.

Pros

• Professional robotics aesthetics

Cons

• Extremely expensive relative to the project budget.

Conclusion

The IRB 1520ID is an example of professional-level aesthetics giving a benchmark to base future design aesthetics off of.

Table 1 Dr. Satici Constraints:

Table 2 Customer Suggestion:

.

1. Safety
2. Ease of use for user and system interface
3. Easily controllable through supplied systems
4. Precision
5. Portability

1. Low maintenance or long life
2. Maintenance time/required skill
3. Widely available parts

1. Desired Performance
2. Marketability
3. Cost

1. Ease of production
2. Cost of production

The acrobot uses an electric motor to supply torque to the second pendulum arm, which in turn causes the first pendulum to rotate into an upright vertical position. We currently have three options for our drivetrain selection: gear-driven, belt-driven, or dual shear compact design.

The linkage arms will likely be made of aluminum to help keep our weight down. Our goal is to use the lowest friction bearings that we can afford. Our system will be free-standing.

We plan on using the encoders and motor from the existing Boise State model. The current encoders have a 2048 tic resolution. If we decide we need to use different encoders they will have at least the same resolution as the current ones.

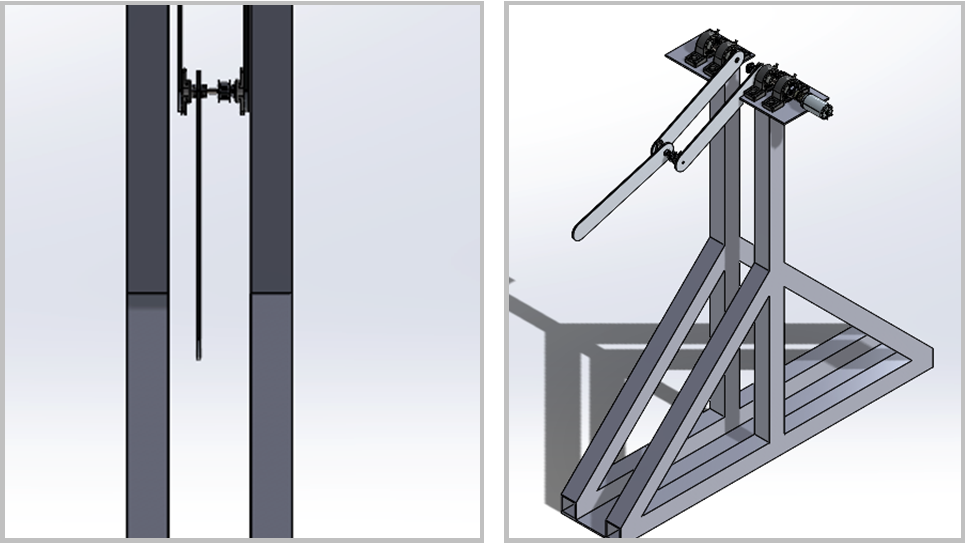

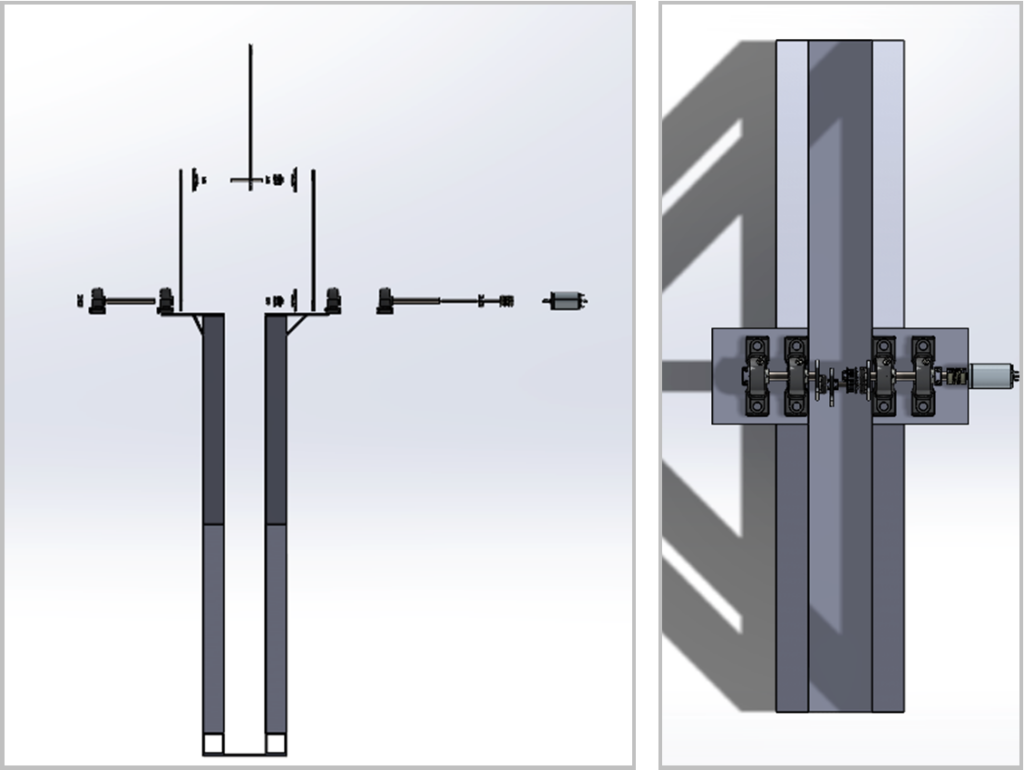

Images of our Solidworks model’s are shown later on this page as well as explanations of our belt drive and dual shear chassis design:

A belt drive could use either of the two linkage options and has some distinct pros and cons. Using a pulley system would reduce the amount of momentum needed to overcome for machine movement. A pulley system has the potentially lighter weight than a gear drive train. A belt system could be inexpensive to produce and easy to maintain. The cons are the potential issues with belt tensioning leading to subsequent slippage. Similarly, slippage could negatively impact the accuracy of measurements. Depending upon the construction method it may not be aesthetically pleasing and may need scheduled maintenance on a time based schedule regarding belt degradation.

Most of the testing for our double pendulum will come once the product is in prototyping phase and being finally assembled. While the arm lengths will be measured before assembly, once everything is put together, the total length of the apparatus will be measured to ensure that it’s less than 70 cm. Once the double pendulum is built, it will be mounted to the table and run to check that all the pieces are properly assembled and structurally safe for the user and anyone else in the room. The device will be run twice so we can check that the pendulum will stop by switching the regular on/off switch and the emergency switch.

After the device has been fully tested to make sure that the device is safe to operate, each team member will be timed replacing the second pendulum with the wheel and then the times will be averaged to make sure that it can be switched in the time allotted for that task. This process will also be done with random parts and pieces on the double pendulum to check that each part can be easily and quickly changed or replaced if an issue is encountered. Doing this will extend the life of the product so that if something breaks, it can be replaced and fixed instead of being completely out of commission. The team will also take turns putting the fully assembled double pendulum into its stowed position and carrying it individually.

In order to make sure that the finished product is aesthetically pleasing, a picture will be taken and distributed by Gus Engstrom via email to the students in our team’s senior design class and the graduate students in Dr. Satici’s robotics lab. Each student will then be able to reply with whether or not they like the design, and if they don’t they can explain why.

In order to test the performance of the double pendulum, each individual system will be tested. For example, the drivetrain will be run apart from the entire double pendulum to ensure that the pulley system is running correctly and that the belt has the right amount of tension. This will also allow the slippage, or hopefully lack thereof, to be tested and corrected if necessary. While not required, there are other tests that will be performed once the double pendulum is completely assembled. One main test will be to see how many swings it takes for our double pendulum to vertically balance.
